Front suspension setup; for b310
Topic Started: Apr 16 2009, 07:42 PM (375 Views)
Jee1
Super Driver

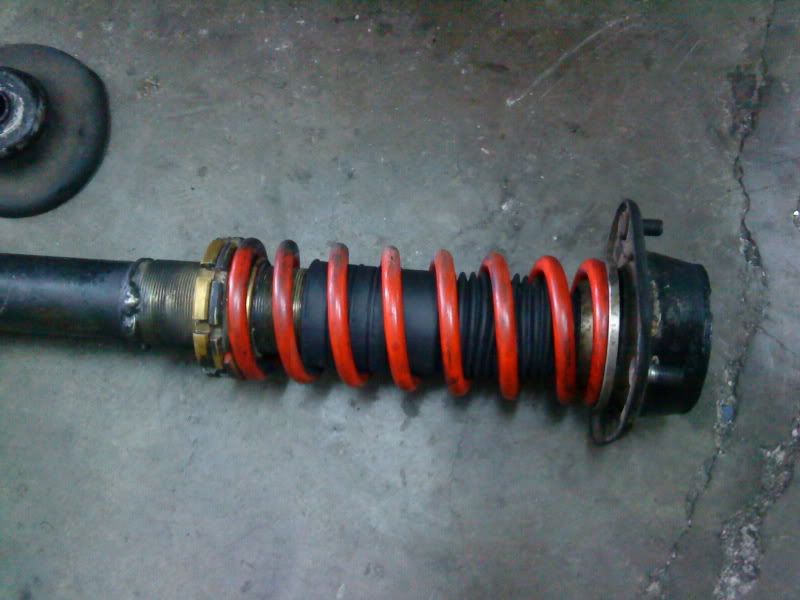

Sorry for the delay in uploading pictures. Anyway, this is my front setup :-

-Original absorbers ( added extra damping oil )
-Height adjustable kit welded onto the absorber housing
-4 kg spring. Can interchange whenever i want with 3kg-->8kg spring. More kg, more stiffer
-Modified the top so that can fit inside the absorber housing

Comfort - 6/10
Cornering - 8/10

I can get better comfort by raising the height by abt 4cm....but i want this low rider looks...even now, the tire is hidden 2cm inside d fender....and i can drop the front by 4cm more. It will be ganas, but my butt hancur la...Posted Image
Offline Profile Quote Post Goto Top

fendy_kjg
Super Driver
oo like ts-cup la nie... hmm how much does it cost ??
Offline Profile Quote Post Goto Top

fendy_kjg
Super Driver

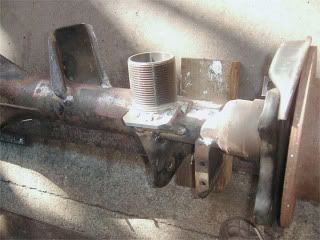

how bout rear i got a pic also they weld the adjust @ the spring housing ( bawah n up la ) abs use soft hard (most tscup use la )
Offline Profile Quote Post Goto Top

fendy_kjg
Super Driver

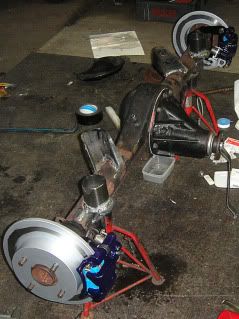

this is for rear la ...

Posted Image
Posted Image

:wub:

Offline Profile Quote Post Goto Top

meanmachine
P Driver
nice setup jee1....btw...where to get those adjuster ??
Offline Profile Quote Post Goto Top

meanmachine
P Driver
add a bit...where did u get those coil and the holder??
Offline Profile Quote Post Goto Top

Jee1
Super Driver
its a place in seri kembangan....he has the gadgets...need to do some machining also to make it fit.
It costed me rm500 for front... As for rear, im using wira modded abs together with sport spring...not bad also d setup...
Offline Profile Quote Post Goto Top

meanmachine
P Driver
mr sim is it???btw for the rear u using wira rear coil over absorber ehh???how to fit the top to our datsun??the below no prop as can fit right in with just a bit modd...the top how u fit as wira coiloverabsorber have 2 screws rite??got any pics to describe it??a photo would help..thanx.
Offline Profile Quote Post Goto Top

fendy_kjg
Super Driver
Jee1
Apr 17 2009, 02:33 AM
its a place in seri kembangan....he has the gadgets...need to do some machining also to make it fit.
It costed me rm500 for front... As for rear, im using wira modded abs together with sport spring...not bad also d setup...
ahaha ah sim i know that place la.. he got one datto aswell with a15 dcoe ( already sold ) kot if not mistaken la the engine...
Offline Profile Quote Post Goto Top

Jee1
Super Driver
Yes, its ah sim. He owns a A15 with twin DCOE and high cams & overbore cylinders.

For my rear, im not using coilover. Im using sport spring and wira abs. For the abs, the top part is plug n play. For the bottom, must mod a little. Must throw d wira's tapak n weld the datsun's tapak onto d abs. But this mod was not done by ah sim la...i did this long time ago...
Offline Profile Quote Post Goto Top

fendy_kjg
Super Driver
ya i know i dod mine to la long time ledi
Offline Profile Quote Post Goto Top
