how to increase torque and HP
Topic Started: Apr 8 2006, 04:07 PM (1,396 Views)
ocphangaz
Member Avatar
Datsun Taikor
one of the ways to improve air flow is port matching. different from port and polish... port and polish is to increase ans smoothen the ports, best with 3 angle porting.

port matching is to match the hole of the manifold and the engine head. or the hole of extractor to the exhaust of the engine head. no matter how smooth or big the port is, if it's not match with the manifold, there will be turbulence and air resistance. something like putting a finger at the end of hose with running water.

this is a relatively easy job, and cheap too!

first take out the manifold and mark with the head gasket... make sure you buy only the original gasket as it is 100% match the cylinder head. if you want you can also port match the cylinder head, but due to financial constraint.. i did only my manifold.

Posted Image

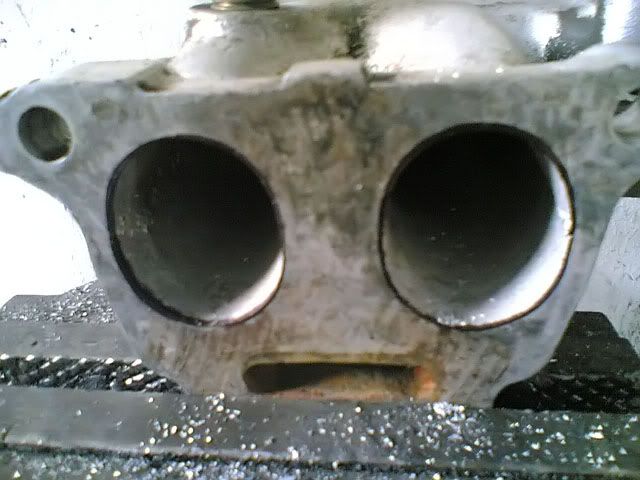

see the amount of meat i got to shave... it is marked by using the gasket using the screw holes as guide. up to 1mm at some places.

Posted Image

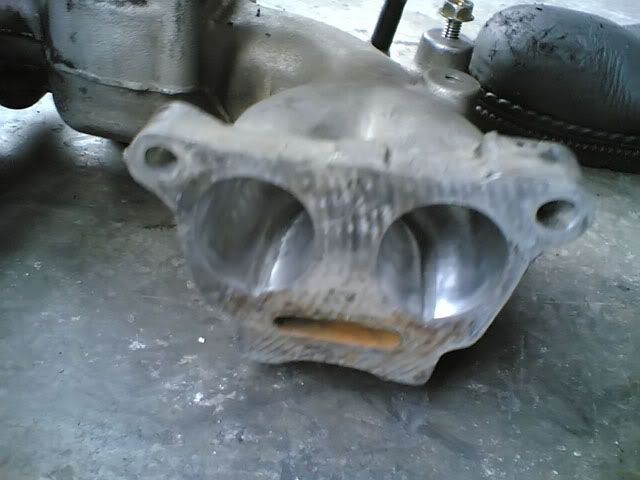

end result inclusive of polishing ;)

total costs RM125

result? free rev up to 4k rpm with slight jab at throttle.
smoother and torquier pickup and continue up to 5krpm without hesitant.

difference is like between switching on and off the aircond on our underpowered vehicle
Offline Profile Quote Post Goto Top

ficxky
Member Avatar
Administrator
you diy yourself or what ?
aih.
i think i want to do it also ...
but dunno how to explain to the mech.
hehe :)
Offline Profile Quote Post Goto Top

zyfull
Member Avatar
Slow Driver
make me tempting...but now no $$$ no time to do...so bad.. <_< :(
Offline Profile Quote Post Goto Top

ocphangaz
Member Avatar
Datsun Taikor
if the mech got dremel and know about engine modification, tell him wanna do "port matching". got extra cash do together with port polishing for all intake and exhaust valve
Offline Profile Quote Post Goto Top

cookie
Datsun Taikor
simple job for a mechanic as they just need to follow the gasket pattern B)
Offline Profile Quote Post Goto Top

ficxky
Member Avatar
Administrator
oh ok :D
Offline Profile Quote Post Goto Top

ocphangaz
Member Avatar
Datsun Taikor
Posted Image

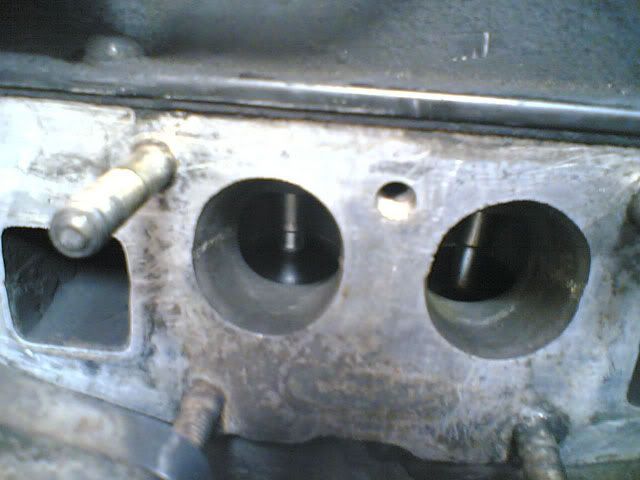

A15 comes with hardened valve seat. a must to use the newer unleaded fuel.

10 year old engine, no carbon deposit on valve seat


Posted Image

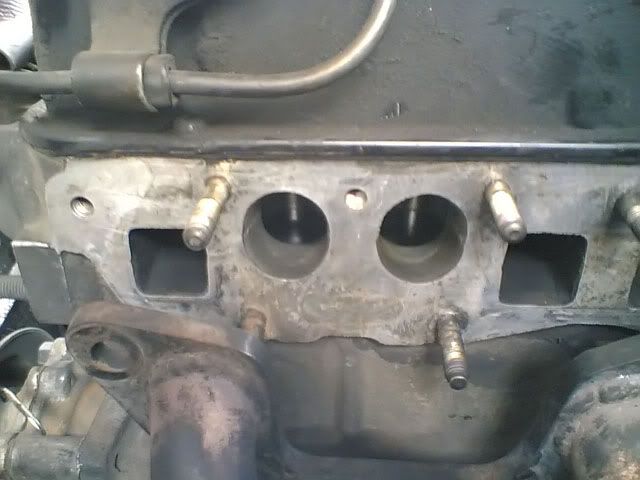

cyclinder 1 & 2

Posted Image

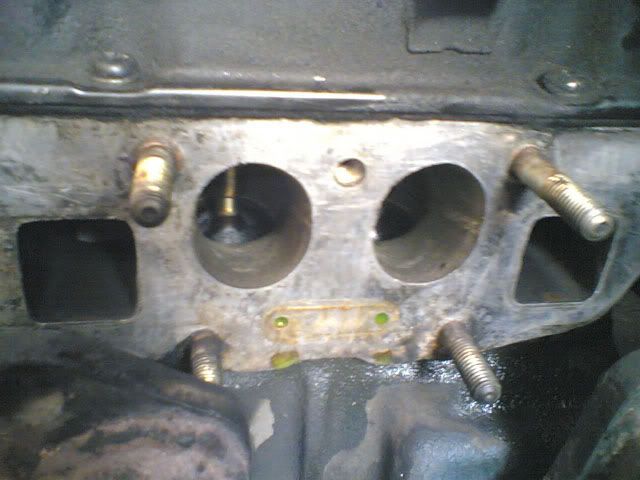

cyclinder 3 & 4

Offline Profile Quote Post Goto Top

cookie
Datsun Taikor
A15 engine keng man u respect :ph43r:
Offline Profile Quote Post Goto Top

ocphangaz
Member Avatar
Datsun Taikor
stock A15 la
Offline Profile Quote Post Goto Top

cookie
Datsun Taikor
ocphangaz
Apr 13 2006, 09:07 AM
stock A15 la

modify stock engine :lol:
Offline Profile Quote Post Goto Top

ocphangaz
Member Avatar
Datsun Taikor
cookie
Apr 13 2006, 09:49 AM
ocphangaz
Apr 13 2006, 09:07 AM
stock A15 la

modify stock engine :lol:

engine also never disassemble. i think the gasket still got write made in japan :P
Offline Profile Quote Post Goto Top

cookie
Datsun Taikor
ocphangaz
Apr 13 2006, 10:01 AM
cookie
Apr 13 2006, 09:49 AM
ocphangaz
Apr 13 2006, 09:07 AM
stock A15 la

modify stock engine :lol:

engine also never disassemble. i think the gasket still got write made in japan :P

better than me mar...... <_<
Offline Profile Quote Post Goto Top

ocphangaz
Member Avatar
Datsun Taikor
why? what happenned to your engine?
Offline Profile Quote Post Goto Top

cookie
Datsun Taikor
ocphangaz
Apr 13 2006, 10:18 AM
why? what happenned to your engine?

nothing just slow as usual :rolleyes:
Offline Profile Quote Post Goto Top

ocphangaz
Member Avatar
Datsun Taikor
T50 celica gearbox?
Offline Profile Quote Post Goto Top
